CHASSIS · G42
4 SERIES G22 / G23 / G26
in Carbon Fiber

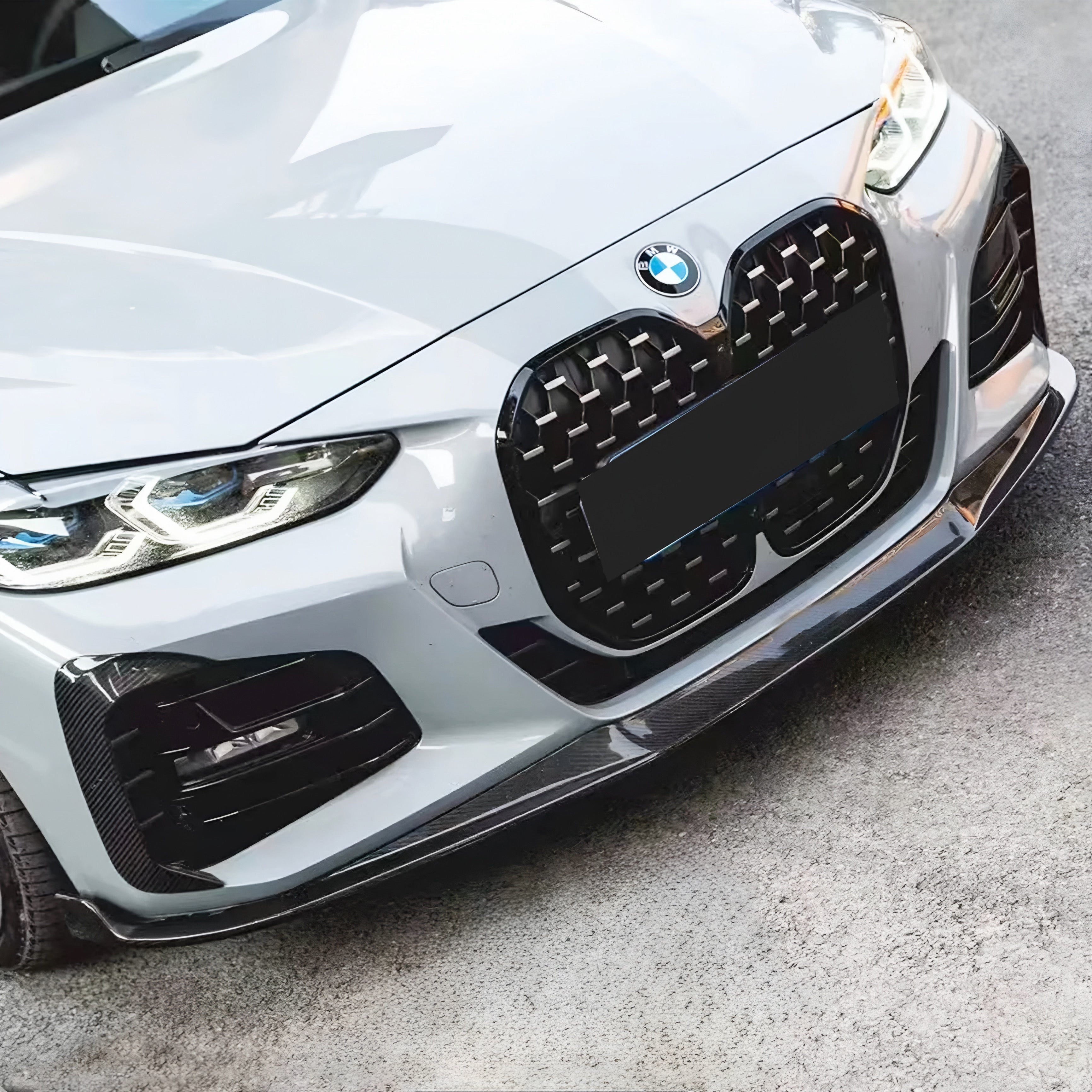

One silhouette family in three tempers — the G22 Coupé, the G23 open-top, the G26 four-door Gran Coupé. Vertical kidney, ducktail, swan-neck wing, B58 engine cover. Sixteen components laminated in Italy, OEM-fit on every 4 Series.
BMW 4 Series G22/G23 Coupè · 2020 —
BMW 4 Series G26 Gran Coupè · 2021 —
PROGRAMME · BMW G22 / G23 / G26
One chassis,
three silhouettes.
From the closed-roof Coupé to the soft-top G23 to the four-door Gran Coupé, the 4 Series shares its CLAR architecture, B48 / B58 engines and signature vertical kidney. Our programme dresses each body style with a coherent visual grammar.
Lay-up
Prepreg
Cure
Autoclave
Finish
Twill or Forged
TECHNICAL DOSSIER · 03
Two finishes,
one philosophy.
TWILL
Carbon Fiber
Classic woven pattern.
Reads as a regular, directional weave under light. Available gloss or matte.
Resin
Epoxy
UV-stabilised epoxy system.
Clear-coated for long-term gloss retention and stone-chip resistance.
FORGED
Forged Carbon
Random short-fibre lay-up cured under pressure.
Marbled, organic figure with no two pieces alike.
Tolerance
± 0.4 mm
Trim-line tolerance verified on a CMM jig
before each part leaves the atelier.
